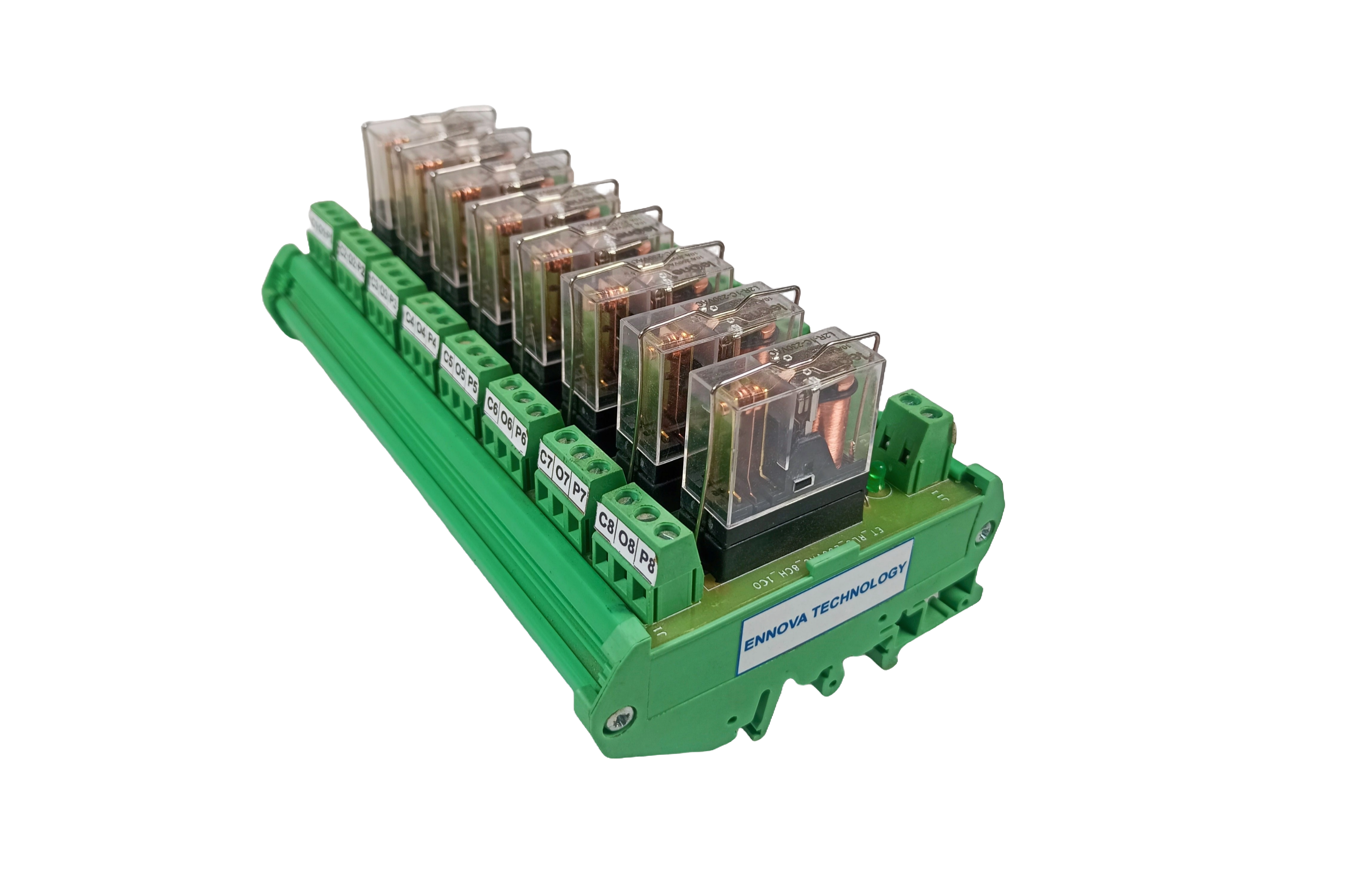

Relay CardS

Discover our Multi channel AC/DC relay cards at Ennova Technology, providing versatile solutions for efficient electrical control. These cards offer multiple channels to meet the diverse needs of your applications. Our Relay Card is a cutting-edge solution designed to enhance control and automation in various applications. Engineered with precision and versatility,this relay card provides seamless integration,optimal performance and reliability for your Electrical System.

KEY FEATURES

SPECIFICATION

APPLICATION

PRODUCTS:

RELAY CARDS
Sr.No PRODUCT ITEM CODE VOLTAGE
RATING		 NO.OF
CHANNELS		 RELAY
CONTACT
1 12VDC 1 CO 2CH RELAY CARD ET-RLC-12V-2CH-1CO 12V 2 SPDT
2 12VDC 1 CO 4CH RELAY CARD ET-RLC-12V-4CH-1CO 12V 4 SPDT
3 12VDC 1 CO 6CH RELAY CARD ET-RLC-12V-6CH-1CO 12V 6 SPDT
4 12VDC 1 CO 8CH RELAY CARD ET-RLC-12V-8CH-1CO 12V 8 SPDT
5 12VDC 2 CO 2CH RELAY CARD ET-RLC-12V-2CH-2CO 12V 2 DPDT
6 12VDC 2 CO 4CH RELAY CARD ET-RLC-12V-4CH-2CO 12V 4 DPDT
7 12VDC 2 CO 6CH RELAY CARD ET-RLC-12V-6CH-2CO 12V 6 DPDT
8 12VDC 2 CO 8CH RELAY CARD ET-RLC-12V-8CH-2CO 12V 8 DPDT
9 24VDC 1 CO 2CH RELAY CARD ET-RLC-24V-2CH-1CO 24V 2 SPDT
10 24VDC 1 CO 4CH RELAY CARD ET-RLC-24V-4CH-1CO 24V 4 SPDT
11 24VDC 1 CO 6CH RELAY CARD ET-RLC-24V-6CH-1CO 24V 6 SPDT
12 24VDC 1 CO 8CH RELAY CARD ET-RLC-24V-8CH-1CO 24V 8 SPDT
13 24VDC 2 CO 2CH RELAY CARD ET-RLC-24V-2CH-2CO 24V 2 DPDT
14 24VDC 2 CO 4CH RELAY CARD ET-RLC-24V-4CH-2CO 24V 4 DPDT
15 24VDC 2 CO 6CH RELAY CARD ET-RLC-24V-6CH-2CO 24V 6 DPDT
16 24VDC 2 CO 8CH RELAY CARD ET-RLC-24V-8CH-2CO 24V 8 DPDT
17 230VAC 1CO 2CH RELAY CARD ET-RLC-230V-2CH-1CO 230V 2 SPDT
18 230VAC 1CO 4CH RELAY CARD ET-RLC-230V-4CH-1CO 230V 4 SPDT
19 230VAC 1CO 6CH RELAY CARD ET-RLC-230V-6CH-1CO 230V 6 SPDT
20 230VAC 1CO 8CH RELAY CARD ET-RLC-230V-8CH-1CO 230V 8 SPDT

PART INFORMATION :

Schematic:

PCB Layout:

DOWNLOADS:

RELAY LEONE DATASHEET
RELAY G2RL DATASHEET
RELAY CARD DATASHEET
RELAY CARD USER MANUAL
