12VDC Relay Card

Discover our Multi-channel AC/DC relay cards at Ennova Technology, providing versatile solutions for efficient electrical control. These cards offer multiple channels to meet the diverse needs of your applications. Our Relay Card is a cutting-edge solution designed to enhance control and automation in various applications.Engineered with precision and versatility,this relay card provides seamless integration,optimal performance and reliability for your electrical System.

KEY FEATURES

Multi Voltage Compatibility: Designed for 12V DC applications, offering versatile compatibility.
Configurable Channels: Available in 2, 4, 6 and 8 channels, allowing precise control over multiple electrical circuits.
Relay Contact Configuration: Options include 1CO-SPDT and 2CO-DPDT, providing flexibility for diverse circuit connections.
Status Indication: Green LED
Compact Design: Space-efficient and suitable for DIN rail mounting.

SPECIFICATION

Relay Type: Omron G2RL-2
Contact Configuration: NO/NC select table for each channel
Isolation: Optically isolated control inputs
Color: Green
LED Indicators: Yes (LED for each channel)
Operating Temperature: (-20°C to 70°C)
Storage temperature: (-10°C to 60°C)
Humidity Range: 10% to 90% RH (non-condensing)
Protection: Free wheeling diode across relay coil

APPLICATION

Industrial Automation and Control Systems
Power Distribution Panels
HVAC System
PLC (Programmable Logic Controller) Applications

Products:

RELAY CARDS

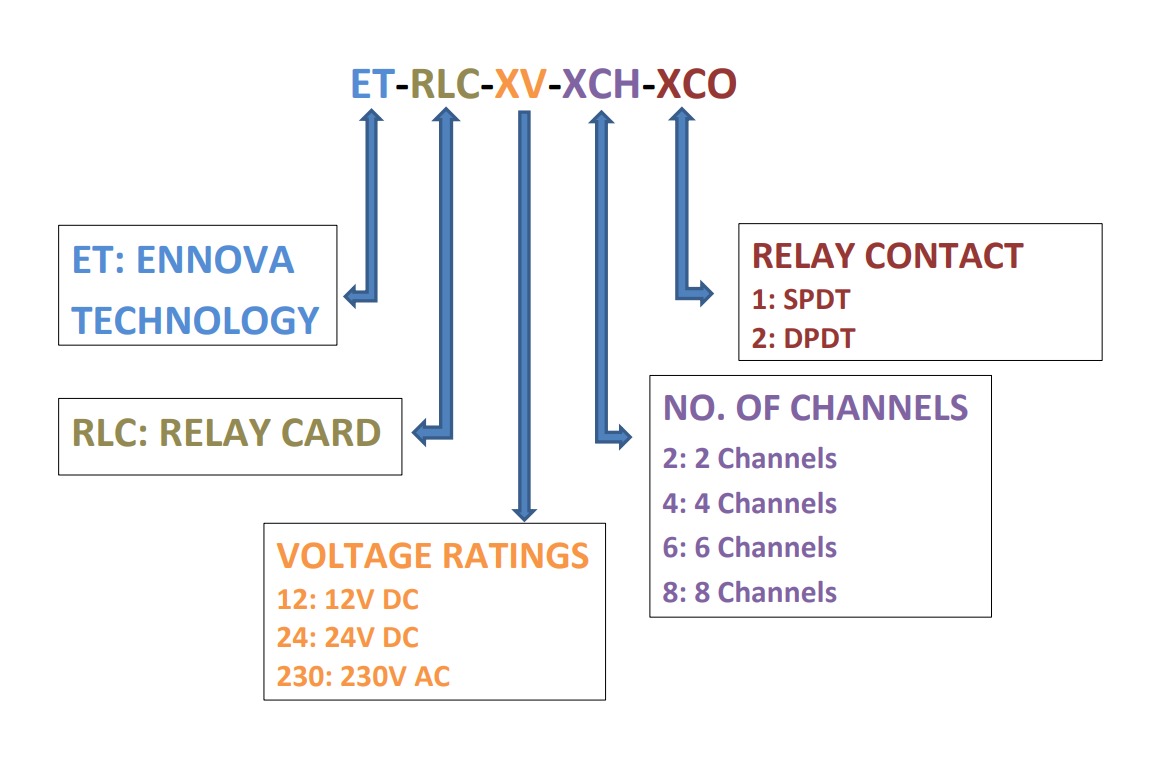

Sr.No	PRODUCT	ITEM CODE	VOLTAGE RATING	NO.OF CHANNELS	RELAY CONTACT

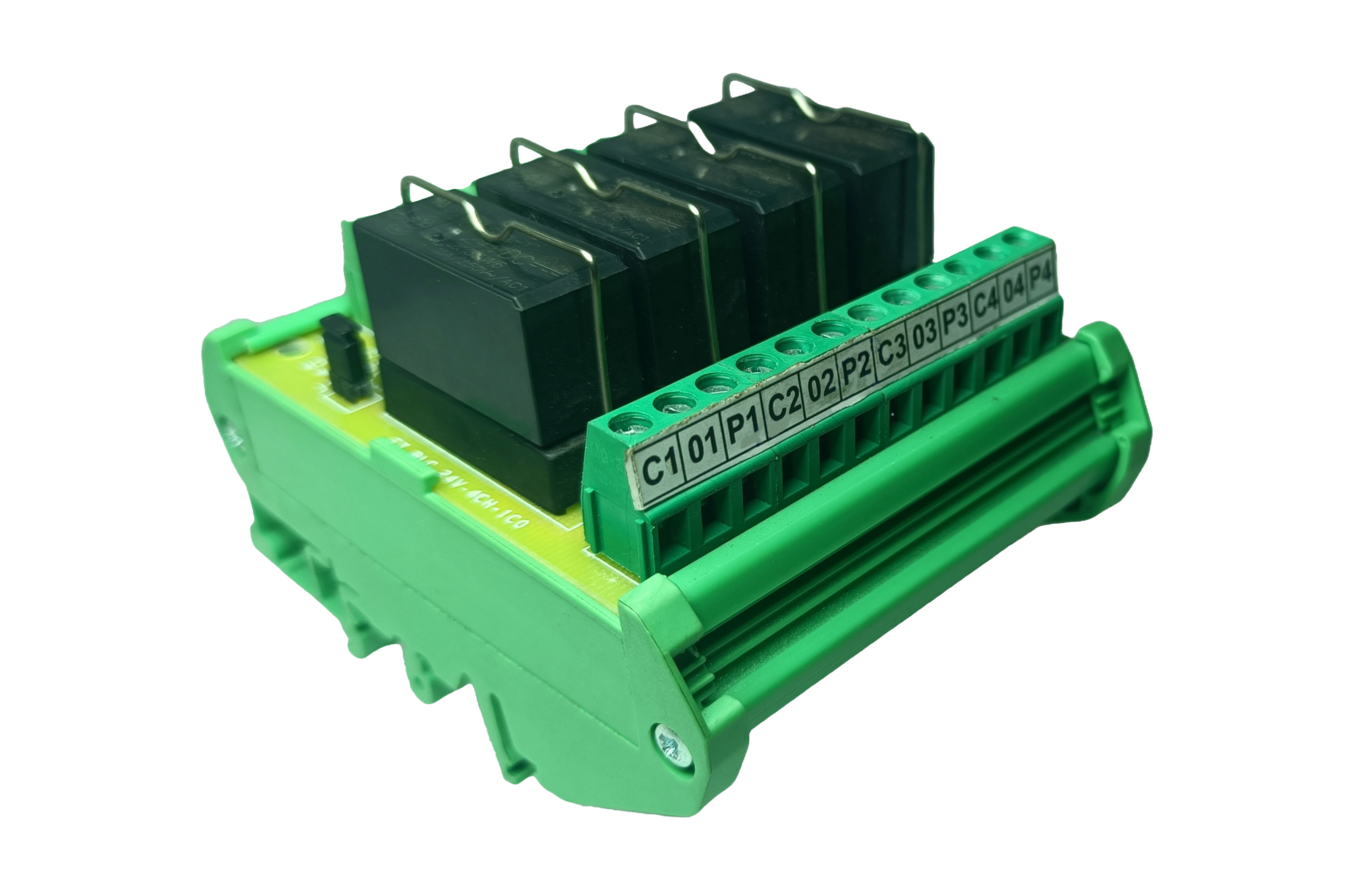

1	12VDC 1CO 2CH RELAY CARD	ET-RLC-12V-2CH-1CO	12V	2	SPDT
2	12VDC 1CO 4CH RELAY CARD	ET-RLC-12V-4CH-1CO	12V	4	SPDT
3	12VDC 1CO 6CH RELAY CARD	ET-RLC-12V-6CH-1CO	12V	6	SPDT

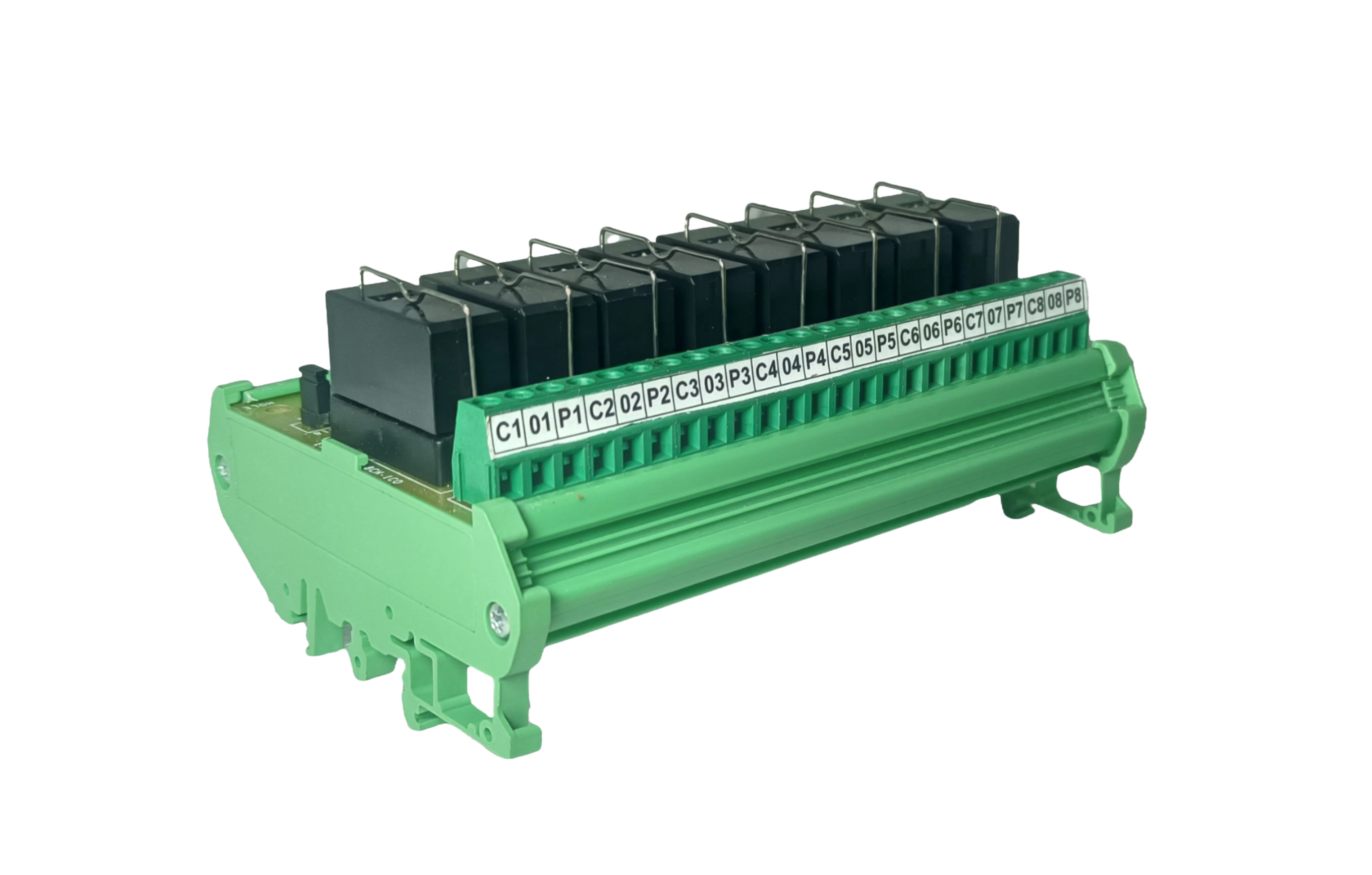

4	12VDC 1CO 8CH RELAY CARD	ET-RLC-12V-8CH-1CO	12V	8	SPDT
5	12VDC 2CO 2CH RELAY CARD	ET-RLC-12V-2CH-2CO	12V	2	DPDT
6	12VDC 2CO 4CH RELAY CARD	ET-RLC-12V-4CH-2CO	12V	4	DPDT
7	12VDC 2CO 6CH RELAY CARD	ET-RLC-12V-6CH-2CO	12V	6	DPDT
8	12VDC 2CO 8CH RELAY CARD	ET-RLC-12V-8CH-2CO	12V	8	DPDT

Part Information :

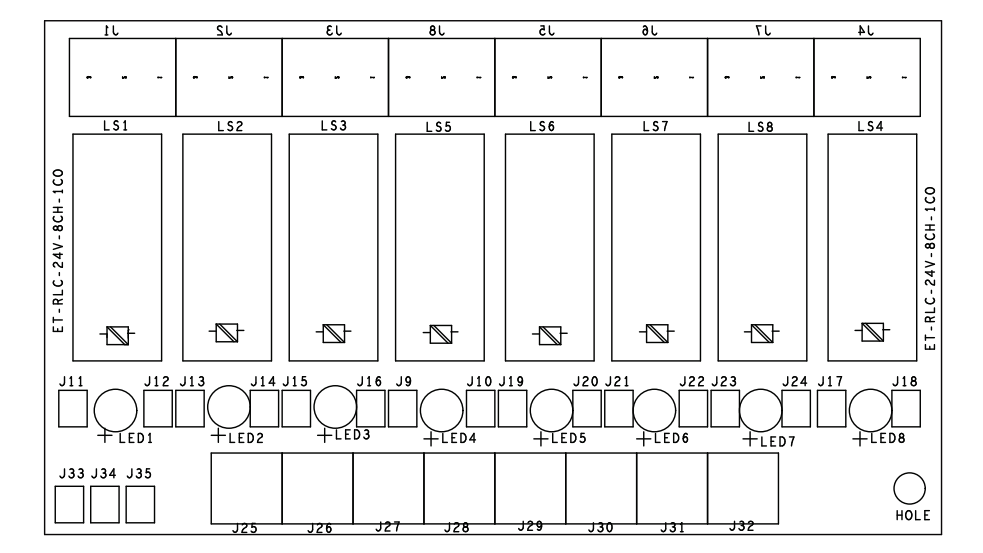

PCB Layout:

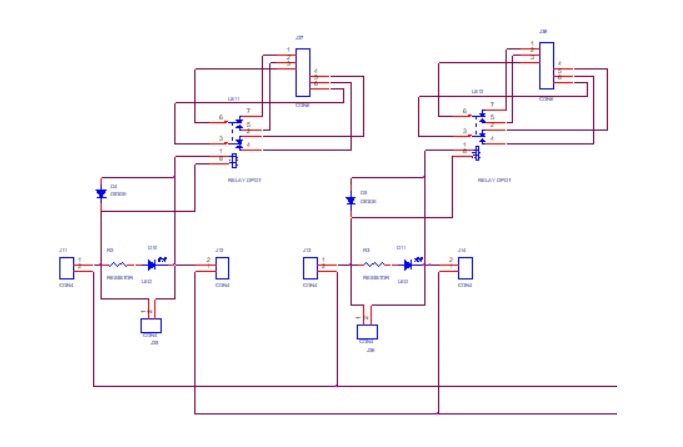

Schematic:

DOWNLOADS:

RELAY LEONE DATASHEET

RELAY G2RL DATASHEET

RELAY CARD DATASHEET

RELAY CARD USER MANUAL
